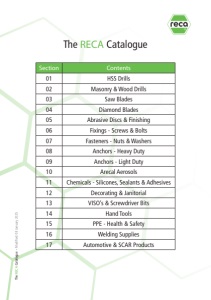

The RECA Catalogue - Modified: 27 August 2024 Section Contents 01 HSS Drills 02 Masonry & Wood Drills 03 Saw Blades 04 Diamond Blades 05 Abrasive Discs & Finishing 06 Fixings - Screws & Bolts 07 Fasteners - Nuts & Washers 08 Anchors - Heavy Duty 09 Anchors - Light Duty 10 Arecal Aerosols 11 Chemicals - Silicones, Sealants & Adhesives 12 Decorating & Janitorial 13 VISO’s & Screwdriver Bits 14 Hand Tools 15 PPE - Health & Safety 16 Welding Supplies 17 Automotive & SCAR Products The RECA Catalogue
The RECA Catalogue - Modified: 27 August 2024 00 02 Page No. Art. No. Prefix SECTION 01 HSS DRILLS HSS / Twist Drills Twist, Long Series, Extra Length, Jobber, Stub, Double Ended 01 01 - 03 0624-25 / 0629 / 0635-36 HSS / Twist Drills Ultra Twist Drill, Evo Twist Drill, Ultra Twist Drill, Tip Top Twist Drill 01 04 - 07 0617 / 0619 - 0620 - 0623 HSS / Cobalt / Inox Cobalt Drills, Morse Taper, Ultra Inox, Drill Sleeve, Drift Key 01 08 - 09 0621 0627 0628 / 3650 HSS / Cobalt Long Series - Co, Stub - Co, Extreme Plus Drill. 01 10 - 11 0617 / 0629 / 0635 TCT / LDX Cutter Rotabroach TCT Holesaw, Accerler8 Max Metal Cutters 01 12 - 13 0632/ 0896 Rotabor / Rotabroach Supercut Rotabor, TCT Rotabroach, Swarf Collector. Machine Vice 01 14 - 15 0618 / 0695/ 3653 Magnetic Drills Rotabroach Commando and Element Series 01 16 - 17 0696 HSS Countersink HSS, Cobalt, Ultra TiAIN, Deburring, Counterbore, Countersink Drill Bit 01 18 - 20 0692 / 0617 / 0217 Cone & Step Drills Cone & Step Drills & Sets 01 21 - 22 0692 / 0641 Taps & Dies Combination Drill/Tap, Tap Wrenches, Hand Taps, HSS TiAIN Set 01 22 - 23 0640 / 0656 / 0657 / 0692 Taps & Dies Machine Taps incl. Aluminium, Ultra & Evo 01 24 - 25 0623 / 0640 / 0643 / 1701-2 Taps & Dies Machine Tap Sets, Tap & Die Sets 01 26 0624, 0639 Taps & Dies Dies, Die Holders, Die Set 01 27 0652, 0659 SECTION 02 MASONRY & WOOD DRILLS SDS Drills Speed-tron SDS Plus Hammer Drill 02 01 - 02 0648 5 SDS Drills X-Twin Ultra SDS Plus 02 03 - 05 0648 4 SDS Drills Max X-Tron, Max Mega Tron 02 06 0649 SDS Chisels Chisels - Max & Plus, Evo, Hex Shank 02 07 - 08 0638 Masonry Drills Percussion & Unicon 02 09 0637 / 0650 Core Drills Heavy Duty 02 10 0649 Core Drills Dry Diamond Core Drills & Kit 02 11 0663 Holesaws, Wood Drills Bi-metal Holesaws, Kits & Arbors 02 12 - 13 0609 / 0616 Wood Drills Wood Beaver, Auger , Flat Wood Bits, Formwork Drill 02 13 - 15 0616 / 0631 SECTION 03 SAW BLADES Jigsaw Blades RECA Jigsaw Blades for Wood 03 01 - 02 0604 Jigsaw Blades RECA Jigsaw Blades for Metal & Specialist Materials 03 03 - 04 0604 Sabre Saw Blades RECA Handle for Sabre Saw Blades 03 05 0605 Sabre Saw Blades RECA Sabre Saw blades for wood, metal and specialist materials. 03 06 - 07 0605 Ultra Cut RECA Ultra Cut Blades 03 08 -09 0605 Multi-Tool Accessories Starlock Multicutter Accessories 03 10 - 14 3696 Circular Saw Machines Evolution Circular Saw, Cut Off Saw and Blades 03 15 0696 / 2616 Saw Blades RECA Zakko, Bosch, Craftpro & Trend Cutter Sets 03 16 -17 2616 / 3696 / 2617 Cutting Sets Trend Cutting Sets for Decorative Woodwork 03 18 0616 SECTION 04 DIAMOND BLADES Diamond Blades Diaflex Diamond Blades - Abrasive /Medium Abrasive/Medium Hard 04 01 - 02 0661/ 0664 / 0662 Diamond Blades Diaflex Diamond Blades - Hard Materials 04 03 - 04 0661 / 0662 / 0664 Diamond Blades Diaflex Diamond Blades - Specialist, Concrete ‘S’ Blades 04 05 - 07 0661 / 0662 / 0664 Diamond Blade Accs Sharpening stone and RECA No-Key 04 06 0664 / 0696 Diamond Drills Diadrill, Diadrill Ceramic Duo, Diadrill 6 pc Sets 04 08 0663 Wet Diamond Cores Wet Diamond Cores & Green X 04 09 0662 / 0663 Diamops Diamops and Grinding Cups 04 10 0662 Petrol Saws Husqvarna & Stihl Petrol Saws & Accessories 04 11 0696 SECTION 05 ABRASIVE DISCS & FINISHING Abrasive Belts Zirconia, Ceramic and Non-Woven Sanding Belt 05 01 2669 Abrasives Waterproof Paper Sheets, Hermes Cloth Sanding Belts 05 02 0672 - 0673 Surface Conditioning RECA Fluffy Surface Conditioning Disc & Mandrel 05 03 0668 Abrasive Rolls Paper & Cloth Rolls 05 04 0673
The RECA Catalogue - Modified: 27 August 2024 00 03 Page No. Art. No. Prefix Sanding Discs Alu Oxide Self Stick, Hook & Loop, Fibre and Zirconium Discs 05 04 - 05 0665 / 0673 Sanding Discs RECAMic Fibre Disc, Ceramic Fibre Discs, RECA Duo Sanding Disc 05 06 - 08 0665 Sanding Discs Fastlock Discs - Ceramic, Webrax, Multiclean 05 09 0668 Mirka Range Mirka Abranet Discs, Abranet Ace, Basecut, Abralon & Goldflex 05 09 - 11 0665 / 0672 Grinding Mops Flap Discs: Flex, Ela, F/S, Eco Cermic, R, Clean, Poli, Vlies, D/I, Rondo 05 12 - 14 0666 Fleece Finishing Disc RECA Compact SEG, Grinding Paste 05 15 0668 - 0674 Finishing Flap Disc Inox Mop 05 16 0666 Cutting Discs RECA Ultra Thin Metal Cutting Discs, Hybrid, 2-in-1, RECAMIC 05 17 - 19 0670 Cutting Discs RECA Metal Cutting Discs including specialist & grinding 05 20 - 22 0669 / 0670 Cutting Discs Multi-Cut Carbide Cutting Disc 05 23 0670 Abrasive Cutting Discs Proflex Cutting & Grinding Discs 05 24 0669 / 0670 Rotary Wire Brushes Twist Knot & Crimped Wire Brushes, Hand Brushes 05 25 - 26 2695 Bristle Brushes Grinder Bristle Brushes 05 27 2695 / 0668 Drum Sanders Drum Sander, Mops, Sleeves & Belts, Flap Wheels, Abrasive Bands 05 28 - 32 0696 / 0674 / 0675 - 6 7 Rotary Burrs Abrasive Point Set, Carbide Rotary Burrs & Sets 05 33 0678 SECTION 06 FIXINGS - SCREWS & BOLTS Sebs - Self Drilling Metal to Metal, Plastic to Metal 06 01 - 06 0211 - 12 /14-15 / 18 - 19 Window Screws PVC-u Window Screws, Frame Anchors for Metal Windows 06 07 - 16 0048 / 0185 / 0210 - 18 Self Tapping Screws Pan & Countersunk in Zinc & Stainless 06 17 - 19 0209 / 0115 - 0123 Chipboard Screws Torx, Pozi, Yellow Pass. 06 20 - 23 0154 / 0182 / 0186 - 0198 Wood Screws Pozi, Hex Head, Roofing Bolts, 06 24 - 25 0192 3 0231 Wood Screws RAPID® Timber Wood Screw, Hex Head Timber & Decking Screws 06 26 - 27 0160 / 0190 / 6010 Drywall Screws Black Phosphate, Zinc, Self Drill, Wafer Head, Collated 06 28 0189 7 Machine Screws Pan Head, Countersunk Head 06 29 0046, 0048 Socket Screws Cap Head - Zinc, Stainless, Countersunk - Zinc, Stainless, Button Head 06 30 - 33 0061 / 0084 -9 / 0092-4 Bolts BZP Coach bolts, Hex Head Bolts 06 34 - 35 0223 / 0053 / 0057 Set Screws Hex Head, Hex Head Flange 06 36 - 38 0057 / 0096 / 0274 Studding Threaded Bar, Internally Threaded Socket 06 39 0954 - 0959 / 6522 SECTION 07 FASTENERS - NUTS & WASHERS Hexagon Nuts Full, Nyloc, Wing, Flange, Dome & Shear Nuts 07 01 - 03 0317 - 22 / 0342 - 8 / 0356 - 68 / 0391 - 96 Washers Flat, Spring, Square Plate, Penny, Lock & Nordlock Washers 07 03 - 06 0407 - 11 / 0441 / 0453 / 5409 / 0428 - 9 Screws Cups & Caps Brass Screw Cups & Domecaps 07 07 0190 / 0590 Pins Lynch Pins & Split Pins 07 08 0472 / 0470 Wire Nails Round / Large Clout / Annular / Panel - Bright / Galvanised 07 09 0478 Conversion Tables Metric to Imperial / Tapping drills / Drill Speed / Screws 07 10 - 11 - SECTION 08 HEAVY DUTY ANCHORS Anchors Cavity fixings - Probolly, Zip-Fix 08 01 0905 Anchors Wire hangers 08 02 0904 Anchors Thunderbolts 08 03 0901 Anchors Sleeve, Shield Anchors 08 04 - 05 0904 Hammer Set Anchor Drop/Wedge 08 06 0904 Throughbolts Throughbolts 08 07 - 08 0909 Anchors MKT Highload Anchor 08 09 0908 Chemical Anchors Chemical Anchor Studs and Capsules 08 10 0913 Chemical Anchors Chemical Injection Resin including VMU and accessories 08 11 - 14 0911 - 4 / 0898 SECTION 09 LIGHT DUTY ANCHORS Hammer Screws Hammer Screws, Metal Nail In Anchors 09 01 0903
The RECA Catalogue - Modified: 27 August 2024 00 04 Page No. Art. No. Prefix Nylon Anchors Nylon Plugs, Nylon Frame Anchors 09 01 - 02 0903 - 05 Light Duty Anchors Plastic Plugs, Prodriva 09 02 - 03 0903 / 0905 Light Duty Anchors Eco Screws, Cartridge, Plas Pins & Nails 09 03 - 04 0233 / 0478 Rivets & Rivet Tools Standard Rivets - Dome, Countersunk, Large Head, Sealed 09 06 - 08 0937 - 8 Rivet Insert Nuts & Tools Insert Type Nuts, Rivet Nut Tools 09 09 - 14 0948 - 9 Light Duty Anchors Cable Ties, Cable Clips, Pipe Clips , Nail In Pipe Clips, 09 15 - 16 0502 / 0836 / 0861 Light Duty Anchors Framing Nails, Second Fix Nails, Gas Nailer for Drywall 09 17 0864 SECTION 10 ARECAL AEROSOLS Cleaning & Care Topclean, Clean, Uniclean, Novaclean, IPA , Silicon 20, Inox Cleaner , Inox Finish, Cockpit Fresh Air, Insider, POWAIR, 10 01 - 04 0895 Lubricating Multifunction, Foam Cut, Bio Cut, Long Lub, Tef Clear, Rostex, Rostshock, Thermo 800, Thermo 1200, Lubricant, Multi Grease 10 05 - 08 0894 / 0896 Marking & Protecting Galva Zinc, Alu 800, Rust Converter, Weldspray, Primer, Top Coat, 4 in 1 Paint, Primer, Corro Inox, Waterproofing, Site Marker 10 09 - 13 0897 Arecal Food Safe H1 Clean, Silicon, Grease, INOX Finish & Long Lub, H1 Grease 10 14 - 15 0895 - 6 Miscellaneous Contact Adhesive, Leak Detector, Starter Spray, Pump-up Bottle 10 16 0892 - 4 SECTION 11 CHEMICALS - SILICONES, SEALANTS & ADHESIVES Silicone Sealants Unibond Trade, Illbruck & HPSA General Purpose & Sanitary Silicones 11 01 - 04 0898 Specialist Silicones Fusion Technology 11 05 0898 Specialist Silicones Polyflex, Lead Sheet Sealant, Mortar Repair 11 06 0898 Specialist Silicones Duct Sealant Water Base, Flexible Rubber Sealing 11 07 0898 Specialist Silicones Acrylic Caulk, Illbruck Acrylic Sealant, Fire Rated Acrylic & Foam 11 08 - 09 0839 Grab Adhesive Unibond PL100, PL200 & FT101, Illbruck High Grip, S78 11 10 - 11 0898 Application Skeleton Guns 11 12 0891 Foam Polyurethane Foam 11 13 0898 Polyurethane Adhesive Liquid, Fast Set Liquid, Rapid Set PU, Foam Adhesive, Arecal 11 14 - 15 0898 Adhesives PVA Adhesive, CY Adhesive, Contact Adhesive & Adhesive Remover 11 16 0893 / 0898 Adhesives Arecal 2 Component Adhesive Polyurethane 11 17 0894 Methyl Methacrylate Arecal 2-Component Adhesive, Methyl Methacrylate 11 18 0894 Wood Fillers Timbafil, Styrene Free & Cascamite Glue 11 19 0898 / 0894 Biscuits, Packers & Shims Wooden Biscuits, Packers & Horse Shoe Shims 11 20 0618 / 0820 SECTION 12 DECORATING & JANITORIAL Adhesive Tapes Duct, Cloth, Aluminium, Double Sided, Electrical, Masking, Barrier, Floor Marking 12 01 - 02 0985 Absorbent Roll Bumperoll, Toilet Rolls & Resource Rags 12 03 - 04 0892 Hand Cleaners & Care Hand Wipes, Barrier Cream, Hand Cleaner & Dispensers 12 04 - 08 0892 / 0895 Decorating Brushes, Rollers, Dust Sheets & White Spirit 12 09 - 11 0693 Site Ancillaries Rubble & Refuse Sacks, Stretch Film 12 11 0892 / 0895 Site Ancillaries Lifting Cushion, Fencing, Pins & Tape 12 12 0695 - 98 / 0985 SECTION 13 VISO’S & SCREWDRIVER BITS VISO Assortments Cabinets, Trays & VISO Assortments, Steel Storage Case 13 01 - 11 0956 - 57 Storage Solutions Workshop Trolley, Professional Tool Bag, Eco Tool Bag, Tool Box 13 12 0700 / 0706 Screwdriver Bits RECA Power Bits: Pozi, Phillips, Slotted, Hex, Torx - Singles & Sets 13 13 - 16 0702 Bit Holders & Handle Universal & Quick Change, RECA Handle, Angle Screw Attachment 13 17 0702 / 0605 INOX Screwdriver Bits RECA INOX Bits: Phillips, Pozi, Hex, Torx & Nut Setters 13 18 0702 Impact Bits Phillips, Pozi, Hex, Holder & Sets 13 19 0702 Bit Sets Bit & Socket Set, Reamer Set, Ultra Ratchet, Universal Bit Set 13 20 - 21 0702
The RECA Catalogue - Modified: 27 August 2024 00 05 Page No. Art. No. Prefix Drill Chucks Chucks, Keys & Adaptors 13 21 0691 / 0696 SECTION 14 HAND TOOLS Spanners Open Ended , Combination & Sets, Ratchet 14 01 - 03 0700 Socket Sets 4-In-1 Power System, Impact Sockets, 1/4”, 1/2” Sets 14 04 - 06 0700 Socket Sets Individual Sockets and Accessories 14 07 - 08 0700 Torque Wrench RECA Torque Wrench 14 09 0700 501 Screwdrivers Multi, 2C, Ultra & VDE Ultra Screwdriver Blades & Sets 14 10 - 14 0701 Hex Keys Ball Ended, Torx Ended, T Handle, Compact Set 14 15 0701 Pliers & Pipe Tools RECA Pliers, Wire Strippers, Water Pump Pliers & Plier Sets, Pipe Cutter 14 16 - 19 0703 Tin Snips RECA Compound Tin Snips, Vertical Tin Snips 14 20 0703 Adjustable Wrenches RECA 8" & 10" Adjustable Wrenches 14 20 0700 Circlip Pliers For Inner Rings, For Outer Rings 14 21 0703 Clamps & Vices All Screw, Lever, One Handed, Solo, Welding, Sash 14 22 - 23 0695 / 0703 / 2142 Hand Files Engineers Hand Files, Accessories & 6pc Set 14 24 - 26 0695 Clamps Sash Clamps 14 27 0695 Hand Planes Jack Planes, Smoothing Planes 14 27 0695 Hacksaws RECA Hacksaw Frames & Blades, Mini Hacksaw 14 28 0603 Knives Trimming Knives & RECA Blades, Snap-off Knives & Blades etc 14 29 - 30 0703 Tackers Rapid Tacker, Fine Wire Staples, Hammer Tacker, Flat Wire Staples 14 31 - 32 0580 Measuring RECA Measuring Tapes, Chalk Line and Dye, Rule & Ruler 14 33 - 34 0705 Measuring Digital Vernier Calipers, Engineers Square 14 34 0705 Spirit Levels Torpedo 360 , Torpedo, Basic Spirit Level, Premium Level 14 35 0705 Scribers & Punches Double Ended Scribers, Auto Centre Punch, Chisel & Punch Set 14 36 0695 / 0704 - 0705 Marking Pro Marker, Deep Hole, Pencils, Duo Marker 14 37 0695 Marking Ball Paint Markers, Permanent & Paint Markers, Chalk 14 38 0695 Puller Nail Pullers 14 39 0695 Hammers Ultra-Soft Face, Lump, Claw & Ball Pein Hammers 14 40 0695 / 0708 Handsaws 22” Handsaw, 14” Handsaw 14 41 0695 / 0981 Storage Professional Tool Bag, Eco Tool Bag 14 42 0700 Lighting Torches, Workshop Light, Workshop Lamps, Batteries 14 43 0981 Electrical & Power Alkaline Batteries, RCD Adaptor, Plug, 110V Sockets, 4 Way Splitter, Cable Reels, Extension Leads & Transformers 14 44 - 45 0774 SECTION 15 PPE Gloves RECA Rigger, Thermo Plus, Flexlite, Builders, Cut Level,Welding, Nitrile, Latex , Vinyl. 15 01 - 06 0687 Hearing Protection Ear Plugs, Cords & Ear Defenders 15 07 0687 Eye Protection Safety Glasses, Goggles & Lens Cleaner 15 08 - 09 0687 Head & Face Protection Safety Helmets, Visors 15 09 0687 Clothing Hi-Vis Clothing and Workwear, Protective Mat 15 10 - 12 0687 / 0742 / 0744 - 5 Footwear Safety Trainers, Shoes & Boots 15 13 0689 Respiratory Protection FFP1, FFP2 & FFP3 Masks, Respirators 15 14 - 15 0687 First Aid Kits 10 & 20 Person, Travel, Van & Truck, Burns & Eyewash, Plasters 15 16 - 17 0686 SECTION 16 WELDING SUPPLIES Welding Wire & Rod Mig Wire, Electrode Rod, Tig Wire 16 01 - 02 0892 Welding Accessories Bohler Welding Helmets & PAPR 16 03 0687 SECTION 17 AUTOMOTIVE & SCAR PRODUCTS SCAR Chemicals SCAR Automotive Aerosols, Cleaning Aerosols, PolyGard Brake Cleaner 17 01 - 03 S8902 - S8919 / 0895-6
01 01 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 01 01 01 All dimensions in mm unless otherwise stated. RECA HSS Drills RECA offer a full range of HSS drill bits, all are ground flute and manufactured from 100% high quality blanks. A point angle of 118° ensures pinpoint accuracy on many surfaces and a diameter tolerance of h8 guarantees quality and precision. RECA HSS Twist Drills DIN 338, ground flute, Type N ¤ Suitable for use on most metals, plastics and wood and available in a wide range of metric sizes and types for varied applications, the drills are ground from a single piece of top-quality high-speed steel, which reduces breaking, blunting and considerably outlasts Carbon and Rolled Drills and gives a much longer tool life. ¤ Drills with diameters of 13mm and above have reduced shank of 13mm, commonly known as “Blacksmith Drills”. ¤ Pack quantity of 10 unless otherwise stated. Art. No. Dimensions (mm) Ø Length Flute 0624 10 1.0 34 12 0624 14 1.4 40 18 0624 15 1.5 40 18 0624 16 1.6 43 20 0624 18 1.8 46 22 0624 20 2.0 49 24 0624 22 2.2 53 27 0624 23 2.3 53 27 0624 24 2.4 57 30 0624 25 2.5 57 30 0624 26 2.6 57 30 0624 27 2.7 61 33 0624 28 2.8 61 33 0624 30 3.0 61 33 0624 31 3.1 65 36 0624 32 3.2 65 36 0624 33 3.3 65 36 0624 34 3.4 70 39 0624 35 3.5 70 39 0624 36 3.6 70 39 0624 38 3.8 75 43 0624 39 3.9 75 43 0624 40 4.0 75 43 0624 41 4.1 75 43 0624 42 4.2 75 43 0624 43 4.3 80 47 0624 44 4.4 80 47 0624 45 4.5 80 47 Art. No. Dimensions (mm) Ø Length Flute 0624 46 4.6 80 47 0624 47 4.7 80 47 0624 48 4.8 86 52 0624 49 4.9 86 52 0624 50 5.0 86 52 0624 51 5.1 86 52 0624 52 5.2 86 52 0624 53 5.3 86 52 0624 55 5.5 93 57 0624 56 5.6 93 57 0624 57 5.7 93 57 0624 58 5.8 93 57 0624 59 5.9 93 57 0624 60 6.0 93 57 0624 62 6.2 101 63 0624 63 6.3 101 63 0624 64 6.4 101 63 0624 65 6.5 101 63 0624 66 6.6 101 63 0624 67 6.7 101 63 0624 68 6.8 109 69 0624 69 6.9 109 69 0624 70 7.0 109 69 0624 71 7.1 109 69 0624 72 7.2 109 69 0624 74 7.4 109 69 0624 75 7.5 109 69 0624 78 7.8 117 75 0624 79 7.9 117 75 Art. No. Dimensions (mm) Pack Qty Ø Length Flute 0624 80 8.0 117 75 5 0624 81 8.1 117 75 5 0624 82 8.2 117 75 5 0624 84 8.4 117 75 5 0624 85 8.5 117 75 5 0624 86 8.6 125 81 5 0624 87 8.7 125 81 5 0624 88 8.8 125 81 5 0624 90 9.0 125 81 5 0624 91 9.1 125 81 5 0624 95 9.5 125 81 5 0624 96 9.6 133 87 5 0624 97 9.7 133 87 1 0624 100 10.0 133 87 1 0624 102 10.2 133 87 1 0624 105 10.5 133 87 1 0624 110 11.0 142 94 1 0624 115 11.5 142 94 1 0624 120 12.0 151 101 1 0624 125 12.5 151 101 1 0624 1275 12.75 151 101 1 0624 130 13.0* 151 101 1 0624 135 13.5* 160 108 1 0624 140 14.0* 160 108 1 0624 145 14.5* 169 114 1 0624 150 15.0* 169 114 1 0624 155 15.5* 178 120 1 0624 160 16.0* 178 120 1 0624 165 16.5* 184 125 1 0624 170 17.0* 184 125 1 0624 175 17.5* 184 125 1 0624 180 18.0* 191 130 1 0624 200 20.0* 205 140 1
01 02 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 02 01 02 All dimensions in mm unless otherwise stated. RECA HSS Drill Cassettes Drill cassettes plus replacement top ups - Saving you time and money. HSS Drill cassettes give you 2 of each of your popular small diameters (1.0mm to 5.0mm) in a robust metal case that will protect your bits, numbered in size order for easy reference. Art. No Range of Drill Sizes No. of Pieces 0624 004 113 1.0 to 13.0mm 35 0624 004 007 ¹ 1.0 to 5.9mm 50 0624 004 009 ² 1.0 to 10.5mm 30 0624 004 110 1.0 to 10.0mm 29 Increment 0.5 mm ¹ Increment 0.1 mm ² Includes tapping size drills RECA HSS Twist Drill Refill Packet for Plus Cassettes ¤ 23 drill set; 2 of each from 1.0 to 5.0mm, 1 of each from 5.5 to 7.5mm Art. No.: 0624 001 RECA HSS Twist Drills Long Series DIN 340, Type N ¤ Long series for metal, right hand drilling. ¤ Optimal drilling capacity with exceptionally long tool life Art. No. Ø Length Flute Pack Qty 0629 25 2.5 95 62 10 0629 30 3.0 100 66 10 0629 32 3.2 106 69 10 0629 35 3.5 112 73 10 0629 40 4.0 119 78 10 0629 42 4.2 119 78 10 0629 43 4.3 126 82 10 0629 45 4.5 126 82 10 0629 48 4.8 132 87 10 0629 50 5.0 132 87 10 0629 55 5.5 139 91 10 0629 60 6.0 139 91 10 0629 65 6.5 148 97 10 0629 70 7.0 156 102 5 0629 75 7.5 156 102 5 0629 80 8.0 165 109 5 0629 85 8.5 165 109 5 0629 90 9.0 175 115 5 0629 100 10.0 184 121 5 0629 115 11.5 195 128 1 0629 120 12.0 205 134 1 0629 130 13.0 205 134 1
01 03 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 03 01 03 All dimensions in mm unless otherwise stated. RECA HSS Extra Length DIN 340, Type N. ¤ Extra Length Series for metal. ¤ Right hand drilling. ¤ Optimal drilling capacity with exceptionally long tool life. ¤ All extra length drills are packed as singles - additional lead times may apply. Art. No. Ø Length 0629 00140 4.0 175mm 0629 00150 5.0 195mm 0629 00160 6.0 205mm 0629 00180 8.0 240mm 0629 001100 10.0 265mm RECA Stub HSS Twist ¤ Manufactured to DIN 1897. ¤ Right-hand cutting for most metals. ¤ No centre punching required, does not drift from drilling location. Ideal for drilling thin materials, rivets and self tapping screws. ¤ Box of 10 RECA Double End HSS Twist ¤ Right-hand cutting for most metals. ¤ Effectively 20 drills in one pack of 10. ¤ No centre punch required, does not drift from drilling location. Ideal for drilling thin materials & rivet holes. ¤ Box of 10 Art. No. Ø Length Flute Art. No. Ø Length Flute 0635 25 2.50 43 14 0635 48 4.80 62 26 0635 30 3.00 46 16 0635 49 4.90 62 26 0635 32 3.20 49 18 0635 50 5.00 62 26 0635 33 3.30 49 18 0635 51 5.10 62 26 0635 35 3.50 52 20 0635 52 5.20 62 26 0635 40 4.00 55 22 0635 55 5.50 66 28 0635 41 4.10 55 22 0635 60 6.00 66 28 0635 42 4.20 55 22 0635 100 10.00 89 43 0635 45 4.50 58 24 Art. No. Ø Length Flute 0636 30 3.00 46 10.6 0636 32 3.20 49 11.2 0636 33 3.30 49 11.2 0636 35 3.50 52 12.5 0636 40 4.00 55 14.0 0636 41 4.10 55 14.0 0636 42 4.20 55 14.0 0636 50 5.00 62 17.0 0636 51 5.10 62 17.0 0636 55 5.50 66 19.0 0636 60 6.00 66 19.0 0636 65 6.50 70 21.2
01 04 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 04 01 04 All dimensions in mm unless otherwise stated. RECA ULTRA HSS Twist Drill with Tricon shaft The Ultra HSS twist drill steel combines the best features of others Twist Drills: ¤ 118 ° cutting angle. ¤ Tricon shaft, prevents movement of the drill within the chuck, and enable optimum power transfer to the drill point. ¤ Oxide treated drill chamfer, reduces heat load on the drill, increasing service life ¤ Dimensional stability, enabling the drilling of precise holes. ¤ Low feed and cutting force ¤ This drill is especially suitable for steel up to 1000 N / mm² and cast steel (alloyed and unalloyed), cast iron, malleable cast iron, sintered iron, nickel silver and graphite. Art. No. Ø Length Flute Pack Qty 0617 000 020 2.0 49 24 10 0617 000 025 2.5 57 30 10 0617 000 030 3.0 61 33 10 0617 000 032 3.2 65 36 10 0617 000 035 3.5 70 39 10 0617 000 040 4.0 75 43 10 0617 000 042 4.2 75 43 10 0617 000 045 4.5 80 47 10 0617 000 050 5.0 86 52 10 0617 000 055 5.5 93 57 10 0617 000 060 6.0 93 57 10 0617 000 065 6.5 101 63 10 0617 000 068 6.8 109 69 10 0617 000 070 7.0 109 69 10 0617 000 075 7.5 109 69 10 0617 000 080 8.0 117 75 1 0617 000 085 8.5 117 75 1 0617 000 090 9.0 125 81 1 0617 000 095 9.5 125 81 1 0617 000 100 10.0 133 87 1 0617 000 102 10.2 133 87 1 0617 000 105 10.5 133 87 1 0617 000 110 11.0 142 84 1 0617 000 115 11.5 142 84 1 0617 000 120 12.0 151 101 1 0617 000 125 12.5 151 101 1 0617 000 130 13.0 151 101 1 Tricon Shaft RECA ULTRA HSS Twist Drill Set ¤ 34pc set (1-13mm) ¤ 1.0 - 5.0 x 2pcs, 5.5 – 13.0 x 1pc ¤ 0.5mm increment Art. No. 0617 004 913
01 05 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 05 01 05 All dimensions in mm unless otherwise stated. RECA EVO Twist drill ¤ EVO twist HSS drill with TRICON shaft, type N, right-hand cutting, DIN 338, HSS, ground and TiAIN head coating. ¤ 118° EVO blade with cross-ground section for drilling with pin-point accuracy - no centre punch; required. ¤ Dimensional accuracy - precise drill holes; low feed and cutting forces for an energy-saving operation. ¤ The TRICON shaft (from 4mm) offers a positive-fit transmission of forces with no movement in the drill chuck which allows optimal power transfer and no groove formation. ¤ No excessively deep clamping in the drill chuck is required, providing optimal elasticity and low energy expenditure when opening and closing the drill chuck, while also protecting the chuck. ¤ The TiAlN head coating provides maximum service life, with no built-up edges, greater surface hardness, improved thermal stability and dry machining possible. "NUR" coating on the area subjected to the greatest load means greater flexibility and cost-effectiveness. ¤ Suitable for machine taps and countersinks Application area: ¤ Precision drill for drilling steel up to 1000 N/mm² and cast steel (alloyed and non-alloyed), grey cast iron, malleable cast iron, spheroidal cast iron, sintered iron, nickel silver and graphite. RECA EVO HSS Drill Set - 34pc Set contains: 1.0 - 13mm; ¤ 2x 1.0 to 5.0 ¤ 1x 5.5 to 13.0. Art. No.: 0623 004 913 Art. No. Ø Length Flute Pack Qty 0623 000 020 2.0 49 24 10 0623 000 025 2.5 57 30 10 0623 000 030 3.0 61 33 10 0623 000 032 3.2 65 36 10 0623 000 035 3.5 70 39 10 0623 000 040 4.0 75 43 10 0623 000 042 4.2 75 43 5 0623 000 045 4.5 80 47 5 0623 000 050 5.0 86 52 5 0623 000 055 5.5 93 57 5 0623 000 060 6.0 93 57 5 0623 000 065 6.5 101 63 5 0623 000 068 6.8 109 69 5 0623 000 070 7.0 109 69 5 0623 000 075 7.5 109 69 5 0623 000 080 8.0 117 75 1 0623 000 085 8.5 117 75 1 0623 000 090 9.0 125 81 1 0623 000 095 9.5 125 81 1 0623 000 100 10.0 133 87 1 0623 000 102 10.2 133 87 1 0623 000 105 10.5 133 87 1 0623 000 110 11.0 142 94 1 0623 000 115 11.5 142 94 1 0623 000 120 12.0 151 101 1 0623 000 125 12.5 151 101 1 0623 000 130 13 151 101 1
01 06 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 06 01 06 All dimensions in mm unless otherwise stated. RECA Ultra Twist Drill HSS-O Made from top quality high speed steel giving a much longer tool life, the RECA Ultra Twist drill is manufactured using the latest techniques, which reduces breaking and blunting of the drill tip. ¤ 50% faster than most conventional twist drills 0624. ¤ 135° split point angle, helps to centre the drill accurately and reduce wander. ¤ This point angle is ideal is for sheet steel with reduced burring of edges. ¤ Ideal for drilling in most common materials like mild steel, high tensile steel, stainless steel, aluminium, brass, copper and plastic. ¤ There is a multifunctional steam oxide (FE2 04) coating on the drills which helps a drill to retain lubricant, to help wear resistance of the drill and chip flow. ¤ Quality control is checked after each operation and during final inspection. ¤ Colour coded for easy reference and storage. RECA Ultra Twist Drill Set ¤ 28 pc set 2.5-13mm ¤ 2 x 2.5-5mm, 1 x 5.5-13mm Art. No.: 0620 004 213 Art. No. Ø Length Flute Pack Qty 0620 20 2.00 50 25 10 0620 25 2.50 57 30 10 0620 30 3.00 61 33 10 0620 32 3.20 65 36 10 0620 35 3.50 70 39 10 0620 40 4.00 75 43 10 0620 42 4.20 75 43 10 0620 45 4.50 80 47 10 0620 50 5.00 86 52 10 0620 55 5.50 93 57 10 0620 60 6.00 93 57 10 0620 65 6.50 101 63 10 0620 68 6.80 109 69 10 0620 70 7.00 109 69 10 0620 75 7.5 109 69 10 0620 80 8.00 117 75 1 0620 90 9.00 125 81 1 0620 100 10.00 133 87 1 0620 102 10.2 133 87 1 0620 105 10.50 133 87 1 0620 110 11.00 142 94 1 0620 120 12.00 151 101 1 0620 130 13.00 151 101 1 0620 135 13.5 160 108 1 0620 140 14.0 160 108 1 0620 145 14.5 169 114 1 0620 155 15.5 178 120 1 0620 160 16.0 178 120 1
01 07 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 07 01 07 All dimensions in mm unless otherwise stated. RECA Tip Top Twist Drill HSSX-O ¤ A universal model for precise centring - the drill almost never runs off centre and it is even possible to perform angled spot drilling - exceptional drilling progress with multiple cutting edges in use at the same time and minimal energy expenditure required. ¤ The drill does not hook into the material making it effortless to drill out existing holes and circular holes even in sheet metal machining. ¤ Manufactured from the latest generation HSSX base material which offers maximum flexibility and heat strengthening in one tool, meaning more material types can be processed. ¤ The multifunctional steam oxide (Fe2 O4) coating is an adhesive oxide coating with a thickness of 0.010 mm offering improved adhesion of cooling lubricant on the tool surface - preventing built-up edges and cold shuts - and improving chip discharge from the cutter resulting in reduced heat development in the critical zone. ¤ Increased surface hardness - thus improved wear resistance. ¤ Tip Top tips of 3.0 mm and above. TRICON shaft of 4.0 mm and above. ¤ A TRICON shaft prevents spinning in the drill chuck, eliminating damage to the drill bit and ensures the drill is securely and firmly clamped, particularly in the quick-action drill chuck. These features all result in optimal power transmission to the tip where the power is needed. Field of Application: Steel, stainless steel, aluminium, plastic, non-ferrous metals, cast iron, unalloyed heattreated steels, hardwood, and softwood etc. Art. No. Size *0619 004 913 Set contains: 1.0 - 13mm ** 0619 004 410 4mm, 5mm, 6mm, 8mm, and 10mm Art. No. Ø Overall Length Flute Length Pack Qty 0619 000 020 2.0 49 24 10 0619 000 025 2.5 57 30 10 0619 000 030 3.0 61 33 10 0619 000 032 3.2 65 36 10 0619 000 033 3.3 65 36 10 0619 000 035 3.5 70 39 10 0619 000 040 4.0 75 43 10 0619 000 042 4.2 75 43 10 0619 000 045 4.5 80 47 10 0619 000 050 5.0 86 52 10 0619 000 052 5.2 86 52 5 0619 000 055 5.5 93 57 5 0619 000 060 6.0 93 57 5 0619 000 065 6.5 101 63 5 0619 000 068 6.8 109 69 5 0619 000 070 7.0 109 69 5 0619 000 075 7.5 109 69 5 0619 000 080 8.0 117 75 5 0619 000 085 8.5 117 75 1 0619 000 090 9.0 125 81 1 0619 000 095 9.5 125 81 1 0619 000 100 10.0 133 87 1 0619 000 102 10.2 133 87 1 0619 000 105 10.5 133 87 1 0619 000 110 11.0 142 94 1 0619 000 115 11.5 142 94 1 0619 000 120 12.0 151 101 1 0619 000 125 12.5 151 101 1 0619 000 130 13 151 101 1 * **
01 08 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 08 01 08 All dimensions in mm unless otherwise stated. RECA HSS Cobalt Drills RECA offer a full range of HSS Cobalt drill bits, all are ground flute and manufactured from 100% high quality blanks. A point angle of 118° ensures pinpoint accuracy on many surfaces and a diameter tolerance of h8 guarantees quality and precision. ¤ Optimum drilling precision and cleanliness due to pin-point accuracy, offering maximum performance and precision through professional development of INOX geometry. ¤ A stronger drill core offers high stability for better strength and a more balanced drill bit. ¤ Manufactured from a special alloy containing more cobalt, increased heat stability and high precision is acheiveable even at maximum operational limits. ¤ The INOX twist profile with its special helix ensures smooth drilling, improved swarf removal and less jamming. Art. No. Ø Length Flute Pack Qty Art. No. Ø Length Flute Pack Qty 0621 020 2.00 49 24 10 0621 065 6.50 101 63 5 0621 025 2.50 57 30 10 0621 070 7.00 109 69 5 0621 030 3.00 61 33 10 0621 075 7.50 109 69 5 0621 032 3.20 65 36 10 0621 080 8.00 117 75 1 0621 033 3.30 65 36 10 0621 085 8.50 117 75 1 0621 035 3.50 70 39 10 0621 090 9.00 125 81 1 0621 040 4.00 75 43 10 0621 095 9.50 125 81 1 0621 042 4.20 75 43 10 0621 100 10.00 133 87 1 0621 045 4.50 80 47 10 0621 105 10.50 133 87 1 0621 050 5.00 86 52 10 0621 110 11.00 142 94 1 0621 055 5.50 93 57 10 0621 120 12.00 151 101 1 0621 060 6.00 93 57 10 0621 125 12.50 151 101 1 0621 130 13.00 151 101 1 RECA Morse Taper Shank Drills ¤ HSS DIN 345 with 118° standard point. ¤ The Morse taper allows the drill to be mounted directly into the spindle of the machine - bench, pedestal and floor drills - giving higher torque transmission into the work piece. ¤ Suitable for drilling of steel and cast steel (alloy or non alloy), grey iron and malleable cast iron. ¤ Larger sizes from 26mm available in MT3/4 on request. Art. No. Ø Length Flute Pack Qty 0628 120 12.00 182 101 1 0628 130 13.00 182 101 1 0628 140 14.00 189 108 1 0628 145 14.50 212 114 2 0628 150 15.00 212 114 2 0628 160 16.00 218 120 2 0628 165 16.50 223 125 2 0628 170 17.00 223 125 2 0628 180 18.00 228 130 2 0628 190 19.00 233 135 2 0628 200 20.00 238 140 2 0628 210 21.00 243 145 2 0628 220 22.00 248 150 2 0628 250 25.00 281 160 3 0628 260 26.00 286 165 3
01 09 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 09 01 09 All dimensions in mm unless otherwise stated. RECA Ultra Inox Drill ¤ DIN388 HSS-CO5% HSS Cobalt drill with Tricon shaft ¤ 135° turbo cutter, helps to centre drill accurately and reduce wander meaning no centre punch required. ¤ TRICON SHAFT, prevents movement of drill within the drill chuck, and enables optimum power transfer to the drill point. (from 4.00mm). ¤ Black and gold heat surface treatment, helps reduce thermal load on the drill, helping to extend the drill life. (from 3.00mm). ¤ This drill is especially suitable for hard materials such as HARDOX® 500, A2 & A4 stainless or titanium with a strength of up to 850n/mm². ¤ Optimal performance on material up to 5mm thick. RECA Ultra Twist Drill Set ¤ 34 pc set 2.5-13mm ¤ 2 x 1-5mm, 1 x 5.5-13mm Art. No.: 0627 004 913 Art. No. Ø Length Flute Pack Qty 0627 000 020 2.0 49 24 10 0627 000 025 2.5 57 30 10 0627 000 030 3.0 61 33 10 0627 000 032 3.2 65 36 10 0627 000 033 3.3 65 36 10 0627 000 035 3.5 70 39 10 0627 000 040 4.0 75 43 10 0627 000 042 4.2 75 43 5 0627 000 045 4.5 80 47 5 0627 000 050 5.0 86 52 5 0627 000 055 5.5 93 57 5 0627 000 060 6.0 93 57 5 0627 000 065 6.5 101 63 5 0627 000 068 6.8 109 69 5 0627 000 070 7.0 109 69 5 0627 000 075 7.5 109 69 5 0627 000 080 8.0 117 75 1 0627 000 085 8.5 117 75 1 0627 000 090 9.0 125 81 1 0927 000 095 9.5 125 81 1 0627 000 100 10 133 87 1 0627 000 102 10.2 133 87 1 0627 000 105 10.5 133 87 1 0627 000 110 11.0 142 94 1 0627 000 115 11.5 142 94 1 0627 000 120 12.0 151 101 1 0627 000 125 12.5 151 101 1 0627 000 130 13.0 151 101 1 Morse Taper Drill Sleeve To reduce hole size of machine spindle where the drill shank is smaller than the spindle hole. Drift Key Used to help ejection of tapered tools from machine spindles, quickly and easily. Art. No. Outside Inside 3650 548 21 2 1 3650 548 32 3 2 Art. No. Size 3650 562 12 MT1 & 2 3650 562 3 MT3
01 10 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 10 01 10 All dimensions in mm unless otherwise stated. RECA HSS Twist Drills Long series – Co Twist drill with straight shank, long, bare, type N, right-hand cutting, DIN 340, tolerance h8, HSS-Co 5% Advantages: ¤ For drilling work on deep-set areas ¤ Perfectly suited to machining tough and thick-walled materials ¤ Exceptional thermal hardness resistance for maximum service life ¤ Perfectly suited for use in hand-held, pillar and upright drills Also suitable for CNC machines. Application area: High-performance drill with marked thermal hardness resistance. For drilling alloyed and non-alloyed steels and cast materials with strengths in excess of 800 N/mm², in particular stainless steels, high-alloy steels. Art. No. Ø Length Flute Pack Qty 0629 500 030 3.0 100 66 10 0629 500 032 3.2 106 69 10 0629 500 035 3.5 112 73 10 0629 500 040 4.0 119 78 10 0629 500 042 4.2 119 78 10 0629 500 045 4.5 126 82 10 0629 500 050 5.0 132 87 10 0629 500 055 5.5 139 91 10 Art. No. Ø Length Flute Pack Qty 0629 500 060 6.0 139 93 5 0629 500 065 6.5 148 97 5 0629 500 070 7.0 156 102 5 0629 500 080 8.0 165 109 5 0629 500 100 10.0 184 121 1 0629 500 110 11.0 195 128 1 0629 500 120 12.0 205 134 1 0629 500 130 13.0 205 134 1 RECA Stub Twist Drill HSS- Co ¤ Twist drill HSS-Co 5%, DIN 1897, type N, ¤ No centre punching required, does not drift from drilling location ¤ Ideal for drilling thin materials, for rivets and self-drilling screws Field of Application: ¤ For drilling alloyed and non-alloyed steels with strengths in excess of 800 N/mm², in particular stainless steels, high-alloy steels and heat-treatable steels and case-hardened steels. Art. No. Ø Length Flute Pack Qty 0635 000 030 3.00 46 16 10 0635 000 032 3.20 49 18 10 0635 000 033 3.30 49 18 10 0635 000 035 3.50 52 20 10 0635 000 040 4.00 55 22 10 0635 000 041 4.10 55 22 10 Art. No. Ø Length Flute Pack Qty 0635 000 042 4.20 55 22 10 0635 000 045 4.50 58 24 10 0635 000 049 4.90 62 26 10 0635 000 050 5.00 62 26 10 0635 000 052 5.20 62 26 10
01 11 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 11 01 11 All dimensions in mm unless otherwise stated. RECA Extreme Plus Drill The drill bit for the toughest materials! ¤ DIN 338 type H, right-hand cutting, ground, multi-layer (TiAlN)-ZrN coating, HSS-Co 8%, 135° turbo cutter ¤ HSS-Co 8% - M42 cutting material — extremely long service life ¤ Multi-layer ZrN coating (zirconium nitride) which enhances thermal stability ¤ No centre punching necessary ¤ Can be used for drilling on curved surfaces Application: ¤ Suitable for HARDOX® 500 (for HARDOX 550 preliminary testing is required) and for very hard materials up to 1700 N/mm² such as excavator shovels, lorry superstructures, snowploughs, agricultural machines, armour plating etc. Materials up to 1400 N/mm² can be processed using hand drills. Advice: ¤ Prerequisites for drilling HARDOX®: Stability is crucial. Hand drills are not suitable for drilling Hardox. Minimise the distance between the drill and the work piece and clamp the work piece firmly. Reduce feed rate shortly before drilling through and ensure recommended feed rate and cutting speed are maintained. Art. No. Ø Length Flute Pack Qty 0617 800 030 3.0 61 16 5 0617 800 040 4.0 75 22 5 0617 800 050 5.0 86 26 5 0617 800 060 6.0 93 28 5 0617 800 068 6.8 109 34 5 0617 800 070 7.0 109 34 1 0617 800 080 8.0 117 37 1 0617 800 085 8.5 117 37 1 0617 800 100 10.0 133 43 1 0617 800 102 10.2 133 43 1 0617 800 115 11.5 142 47 1 0617 800 120 12.0 151 51 1 0617 800 130 13.0 151 51 1
01 12 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 12 01 12 All dimensions in mm unless otherwise stated. Rotabroach TCT Cutter A portable cutter for the working professional, an extremely productive tool that is a cost effective alternative to twist drills and broaching cutters. ¤ Manufactured with high quality solid carbide tips, for maximum performance and reliability. ¤ High quality centre drill spring loaded, for fast waster material ejection. ¤ Used in conjunction with drill chuck. ¤ Cutting depth 15mm. ¤ Max tensile strength <1400n/mm². ¤ Ideal for use on structural steel, stainless steel and pipework. ¤ Other size available POA Art. No. Size (mm) 0632 002 114 14 0632 002 116 16 0632 002 118 18 0632 002 120 20 0632 002 122 22 0632 002 125 25 Arecal Cutting Oils Arecal Bio Cut Cutting Oil ¤ A high-grade cutting oil whose contents are fully bio-degradable. Free from mineral oil residues. ¤ Allows for longer tool life. Reduces risk of breakage. ¤ Also available in a 10 litre container Art. No.: 0896 413 400 (400ml) Art. No.: 0896 630 10 (10 litre) Arecal Foam Cut ¤ A foaming high performance cutting oil for most metal cutting tasks. When sprayed, an oily foam is produced which has good adhesion when applied. Art. No.: 0896 414 400 (400ml)
01 13 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 13 01 13 All dimensions in mm unless otherwise stated. Acceler8% Max Metal Cutters The ultimate solution to drilling metal - the perfect, portable tool for the professional electrician, plumber, mechanic, fabricator and general contractor. An extremely productive tool that is a cost effective alternative to broaching cutters; for cutting steel plate, iron, aluminium, copper, cast iron, stainless steel, FRP (i.e. Fibreglass) and plastics. ¤ Special tungsten carbide teeth offering excellent wear & heat resistance to cut stainless steel & tough alloys. Relief angle enhances discharge of metal chips for smooth cutting. ¤ Triple edge cutting system - features two sets of three cutting blades, each with different geometries. This unique system balances the cutting forces, enabling rapid, smooth drilling with better control. ¤ One piece construction - no assembly required. ¤ Ejector spring ejects the slug to save time and the safety collar stop prevents over penetration for safer, faster operation. ¤ Speed - Penetrates steel many times faster than standard bi-metal holesaws. ¤ Life - On tests, drilling into stainless steel, LDX metal cutters drilled over 350 holes compared to a maximum of 10 holes gained from two alternative holesaws. ¤ Usage - LDX metal cutters can be used on standard portable power tools. Run on rotation only, any power tool with a range of 500 to 800rpm can be utilised. System is fully portable with no need for special equipment. ¤ Applications - switch boxes, metal studs, electrical applications, lighting fixtures, body repair, truck body repair, trailer frames, ductile pipe, steel fabrications and structural steel. ¤ Larger sizes from 26mm available in MT3/4 on request. Size (mm) Short Series Art. No. 4.75mm Cutting Depth Long Series Art. No. 25.00mm Cutting Depth 14.0 0632 405 014 0632 425 014 16.0 0632 405 016 18.0 0632 425 018 19.0 0632 425 019 20.0 0632 405 020 0632 425 020 22.0 0632 405 022 0632 425 022 25.0 0632 405 025 0632 425 025 28.0 0632 425 028 30.0 0632 425 030 32.0 0632 405 032 0632 425 032 35.0 0632 425 035 38.0 0632 425 038 40.0 0632 425 040 45.0 0632 425 045 50.0 0632 425 050 Speed Recommendation Size Steel (rpm) Stainless (rpm) 14.0 to 20.0mm 700-1000 300-700 22.0 to 30.0mm 500-800 200-450 32.0 to 40.0mm 300-600 175-315 41.0 to 50.0mm 200-500 120-225 51.0 to 60.0mm 200-400 95-195 Art. No. Description 0632 405 001 Replacement Pilot (SHORT) 0632 425 001 Replacement Pilot (LONG) 0632 405 002 Replacement Spring (SHORT) 0632 425 002 Replacement Spring (LONG) Smooth Cutting Geometry 1. Cutting Angle 2. Relief Angle
01 14 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 14 01 14 All dimensions in mm unless otherwise stated. ¤ Supercut Rotabor cutters are an industry standard range of M2 cutters. ¤ Designed, manufactured and inspected in England by a BSI registered firm. ¤ Approved inspection procedures fulfil the requirements specified by the British Standards EN ISO 9002 certificate. ¤ Supercut Rotabor cutters are used for boring clean, accurate holes through many metals‡ including mild steel, high tensile steel, brass and aluminium. ¤ Rotabor cutters can be used in most metal working and fabricating industries. Main market sectors include steel erectors, steel building services, welders, fabricators, pressure vessel and pipework contractors. ¤ Unique patented ‘chipbreaker’ form allows faster swarf removal and gives longer tool life. ¤ Full range of cutters from 12mm to 60mm available with all popular sizes normally stocked. ¤ Excellent range of accessories available including pins, countersinks, Morse taper adaptors and both large and small magnetic based drilling machines. ¤ Articles shown are generally available from stock. Cutters from 12mm to 100mm in 1mm increments that are not listed above can be ordered on request. Accessories 0618 610 001 Short Pin 0618 620 001 Long Pin 0618 610 003 Short Pin for 12mm Cutter Only 0618 700 030 Small Counterink 30mm 0618 700 050 Large Countersink 50mm 0618 255 010 No. 2 Morse Taper Adaptor 0618 255 011 No. 3 Morse Taper Adaptor 0618 610 002 Short Cutter Bolt Kit In Metal Case (2x14, 2x18, 2x22mm + Pilot) M42 Supercut Rotabor Cutters Short Cutters 30mm Length Dia. Art. No. 12 0618 612 012 14 0618 612 014 18 0618 612 018 22 0618 612 022 Supercut Rotabor Cutters M2 Supercut Rotabor Cutters Dia. 30mm Short Cutters* 60mm Long Cutters† 12 mm 0618 611 012 13 mm 0618 611 013 14 mm 0618 611 014 0618 621 014 15 mm 0618 611 015 0618 621 015 16 mm 0618 611 016 0618 621 016 17 mm 0618 611 017 18 mm 0618 611 018 0618 621 018 19 mm 0618 611 019 0618 621 019 20 mm 0618 611 020 0618 621 020 21 mm 0618 611 021 0618 621 021 22 mm 0618 611 022 0618 621 022 23 mm 0618 611 023 - 24 mm 0618 611 024 0618 621 024 25 mm 0618 611 025 0618 621 025 26 mm 0618 611 026 0618 621 026 27 mm 0618 611 027 0618 621 027 28 mm 0618 611 028 0618 621 028 30 mm 0618 611 030 0618 621 030 32 mm 0618 611 032 0618 621 032 34 mm 0618 611 034 35 mm 0618 611 035 36 mm 0618 611 036 38 mm 0618 611 038 40 mm 0618 611 040 0618 621 040 42 mm 0618 611 042 45 mm 0618 611 045 50 mm 0618 611 050 0618 621 050 52 mm 0618 611 052 56 mm 0618 611 056 60 mm 0618 621 060 Drill Depth: *25.00mm †50.00mm ‡Different base materials require different speed (RPM) and feed rates.
01 15 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 15 01 15 All dimensions in mm unless otherwise stated. TCT Rotabroach Cutters Short Series ¤ Manufactured with highest quality carbide tips, for a long life in the toughest materials. ¤ The tips are 50% tungsten, 50% carbide and are therefore able to resist high temperatures, helping to extend the tool life. ¤ The 3 tooth geometry provides even tooth loading for a smooth and vibration free cut. ¤ The TCT cutters have unique spiral flutes, for fast material removal. ¤ Max tensile strength <1400N/mm². ¤ Ideal for use on construction steel, stainless steel, high strength steel, hard ox (dependent on grade) and Inconel. ¤ Short series (35mm D.O.C), and long series (50mm D.O.C) POA. ¤ Other sizes available POA. Dia Art. No. 14mm 0618 613 014 18mm 0618 613 018 20mm 0618 613 020 22mm 0618 613 022 26mm 0618 613 026 30mm 0618 613 030 Evolution Cyclone Swarf And Chip Collector ¤ Push rod to magnetise, wave over ferrous metal filings which adhere to the cyclone. Withdraw rod to release filings into an appropriate scrap area. ¤ Clean working area with no effort. Excess filings can affect magnet performance on drills! Art. No. 0695 902 001 Machine Vice ¤ Secure reliable and quick clamping of work pieces on drills and measuring machines. ¤ Solid and handy version, with a cast metal body. ¤ Thread spindle covered by a protective sleeve. ¤ Long mounting slots. ¤ Moveable jaw with guide. ¤ Solid clamping jaw with three vertical prisms and one horizontal prism. ¤ Both jaws with support for clamping flat work pieces. Art. No. Jaw width Jaw Height Clamping Capacity Height Weight 3653 732 100 100 mm 30mm 92mm 63.5mm 4.3kg Art. No. Description 0618 610 004 Short pin for TCT Cutter 12-17mm 0618 610 005 Short pin for TCT Cutter 18-52mm
01 16 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 16 01 16 All dimensions in mm unless otherwise stated. Magnetic Drills Rotabroach Commando 40 Machine Rotabroach’s most economical machine, ideal for an intermittent user of broaching cutters. Suitable for drilling holes in ferrous metal while the base magnet holds the drill securely in place. ¤ Suitable for drilling up to 40mm diameter and 50mm depth. ¤ Complete with a 13mm drill chuck. ¤ Twist drill capacity 13mm. ¤ Supplied in a protective carry case complete with safety strap and hex keys. ¤ High density magnet for maximum adhesion. ¤ Reversible handles for use in awkward situations. ¤ “No Volt Release” switch for improved safety handling. ¤ 12 months user confidence warranty. Art. No.: 0696 998 601 (110V) Rotabroach Element 50 Low Profile Machine Rotabroach are proud to launch the largest capacity low profile mag drill on the current market. Its small height, powerful motor and 50mm cutter capacity make it ideal for working in confined spaces and for everyday drilling requirements. ¤ Cutting diameter and depth of cut to 50mm. ¤ 1200w motor with variable, 6 speed setting. ¤ Fitted with Cutsmart technology, designed to increase tool life. ¤ An easy to read panel that indicated when you are drilling with too much force. ¤ Able to counter sink to 30mm (requires extension arbor RD3209). Art. No.: 0696 998 602 (110v) Specifications COMMANDO 40 ELEMENT 50 H x W x D 510 X 180 X 265mm 179 x 100 x 329 Weight 14.2kg 11kg Motor Input Power 1100W 1200w Magnetic Adhesion 8000N 10,000N Speed (no load) 270-610rpm 250 - 500rpm Cutter Capacity 12-40mm 50mm Twist Drill Capacity 13mm - Arbor 19.05 Wheldon -
01 17 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 17 01 17 All dimensions in mm unless otherwise stated. Magnetic Drills Rotabroach Element 75 The Element uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear ¤ For heavy duty operations the ‘Element 75’ is a must for drilling larger holes. ¤ Compact, durable and more portable than other larger machines. ¤ Suitable for drilling up to 75mm diameter by 75mm depth. ¤ The ‘Element 75’ offers forward and reverse functionality. Art. No.: 0696 998 604 (110v), 0696 998 605 (230v) Rotabroach Element 40 ¤ Powerful 1200w motor with a two speed mechanical gearbox. ¤ CutSmart Technology – designed to protect your motor and cutter, prolonging tool life. ¤ 40mm max cutter diameter ¤ Quick release interchangeable handle – allowing you to operate the mag drill from either side or improving accessibility. ¤ Dual motor protection system to prolong the machine’s life and prevent unwanted wear ¤ 13kg in total weight Art. No.: 0696 998 606 (110v), 0696 998 607 (230v) Specifications Element 75 Element 40 Cutter capacity 75mm 40mm Twist drill capacity 26mm with MT Drill 13mm Motor specification 1800w 1200w Magnet adhesion 18500n 10,000Kn No load speed Low gear 70-180rpm High gear 200 – 500rpm Low gear 300 rpm, high gear 600 rpm L x H x W 460 x 545 x 230mm 285 x 510 x 185mm Weight 24kg 13.6kg
01 18 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 18 01 18 All dimensions in mm unless otherwise stated. RECA HSS Countersinks Countersinks are used in a drilling machine to produce a perfect ‘v’ shape in the base material. This allows a countersunk screw to sit perfectly flush to the surface. RECA HSS 90o Countersink Bits ¤ Made from high quality High Speed Steel they offer excellent precision and longevity ¤ Ideal for use on metal but also suitable for use on plastics and wood. ¤ 90O angle suits most popular countersunk heads on wood and machine screws. RECA HSS Countersink ¼ Bit Holder ¤ ¼” bit mount for fast tool change, manufactured from high speed steel ¤ For countersinking, chamfering and deburring in steel, non-ferrous metals, plastics and wood - Optimal results with a low cutting speed RECA Cobalt Countersinks HSSCO cobalt countersinks are also available. HSSCO countersinks are better suited for harder metals such as stainless steel. Art. No. Ø Shaft Length 0692 390 083 8.3 6 50 0692 390 124 12.4 8 56 0692 390 165 16.5 10 60 0692 390 205 20.5 10 63 0692 390 250 25.0 10 67 0692 390 310 31.0 12 71 Set comprising 6.3, 8.3, 10.4, 12.4, 16.5 & 20.5mm available Art. No.: 0692 390 006 Art. No. Ø Shaft Suitable For 0692 314 063 6.3 31 M3 0692 314 083 8.3 31 M4 0692 314 104 10.4 34 M5 0692 314 124 12.4 35 M6 0692 314 165 16.5 40 M8 0692 314 205 20.5 41 M10 Set comprising 6.3, 8.3, 10.4, 12.4, 16.5, 20.5mm Art. No. 0692 314 006 Art. No. Ø Shaft Length 0692 900 063 6.3 5 45 0692 900 083 8.3 6 50 0692 900 104 10.4 6 50 0692 900 124 12.4 8 56 0692 900 165 16.5 10 60 0692 900 205 20.5 10 63 0692 900 250 25.0 10 67 0692 900 310 31.00 12 71 Set comprising 6.3, 8.3, 10.4, 12.4, 16.5 & 20.5mm Art. No.: 0692 900 900
01 19 - Reproduction, even in part prohibited. Printed in UK Modified: 23 August 2024 01 19 01 19 All dimensions in mm unless otherwise stated. RECA Ultra + HSS TiAIN Countersink The triple cutting edged conical and countersink deburring tool is characterised by its new machining geometry. The extra-wide flute offers faster chip and heat transfer, increasing the service life of the tool. The TiAlN (titanium aluminium nitride) coating further increases the life of the countersunk surface. Advantages ¤ Faster countersinking thanks to variable relief grinding that facilitates much higher feed rates. ¤ Longer service life thanks to the narrow cutting wedge, that reduces abrasive wear. ¤ Extremely quiet running ensures an optimal, smooth countersinking result. ¤ TiAIN coating for a longer service life, higher cutting speed and chatter-free working. ¤ Universal use - for materials up to 1100 N/ mm², suitable for steel and stainless steel (blue/green colour rings). ¤ No movement in the drill chuck and optimal, positive-fit power transmission via TRICON shank ¤ Universal application in steel, cast iron, stainless steel, non-ferrous base metals, and light metals. RECA TT Countersink drill bit Equipped with a 4.0 mm diameter drill bit, a 9.4 mm diameter countersink and a depth stop, this piece enables precise pre-drilling and countersinking in one step with a clear view of the working surface. ¤ The drill bit and depth stop can be continuously adjusted. ¤ The supplied drill bit (DIN 338, 4.0 mm) can be changed without any great effort. No special drill bit is required. ¤ No burn marks appear in the wood thanks to the movable depth stop. Application ¤ The RECA TT countersink drill bit should be operated at approx. 1300 rpm. If necessary, lightly lubricate between plastic depth stop and aluminium height adjustment with acid-free penetrating oil containing PTFE (e.g. Arecal Tef Clear Art. No.: 0896 711 400). ¤ Degrease the RECA TT countersink drill bit before using it for the first time. The Allen key provided can be used to set the drilling and countersinking depth or replace the drill bit. ¤ The set screw for the depth stop should be tightened with care and not too tightly. Art. No. Ø Shaft Ø Length Suitable for 0617 910 063 6.3 5 45 M3 0617 910 083 8.3 6 50 M4 0617 910 104 10.4 6 50 M5 0617 910 124 12.4 8 56 M6 0617 910 165 16.5 10 60 M8 0617 910 205 20.5 10 63 M10 0617 910 250 25 10 67 M12 0617 910 310 31 12 71 M16 0617 910 006 6 piece set (Includes 6.3, 8.3, 10.4, 12.4, 16.5 & 20.5) Art. No. Drill Ø Overall Ø 0217 099 100 4 12.4
